Description

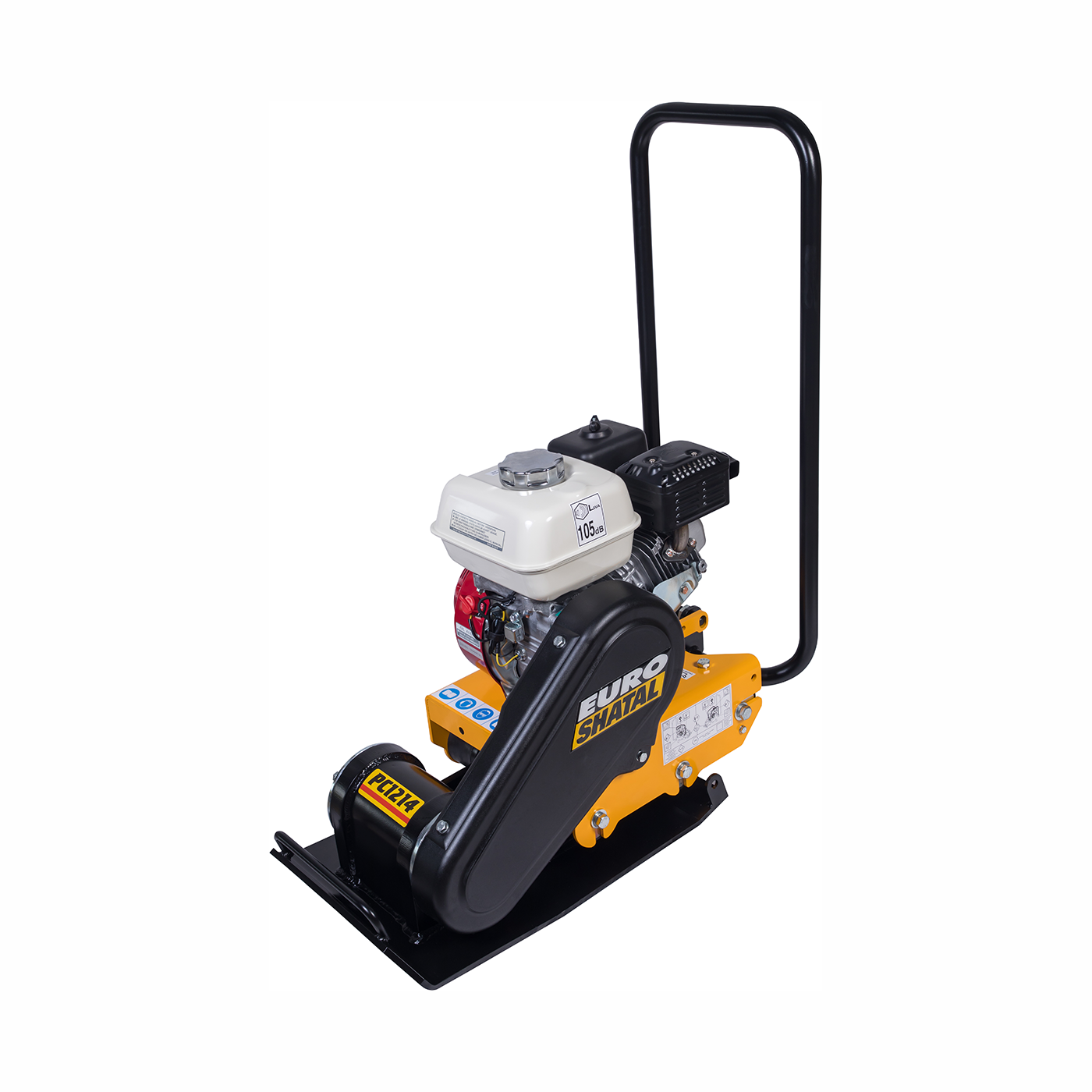

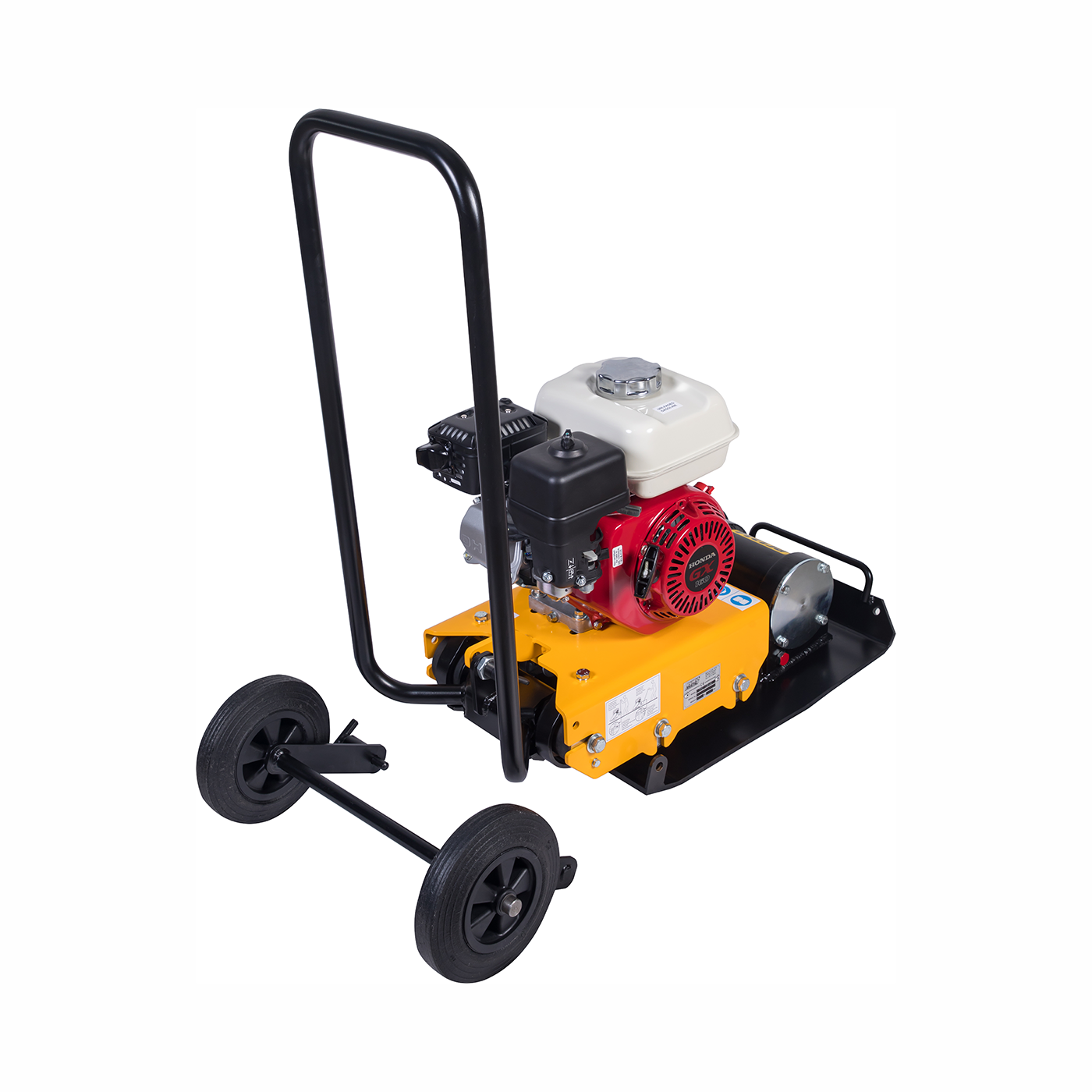

This heavy yet compact and maneuverable plate compactor is designed for efficient soil compaction in narrow trenches, along foundation walls, and around abutments. Powered by a reliable 5.5 HP Honda gasoline engine with an oil sensor, it delivers a centrifugal force of 1200 kg, ensuring optimal performance on sand, gravel, and mixed soils. The standard version includes a lifting hook and wheel set for easy transportation, with an optional water tank available to suit varied site conditions. Weighing 75 kg with a 35 cm wide plate, it combines power and portability for demanding job sites.
Features
- 5.5 HP Honda gasoline engine with oil sensor
- Centrifugal force: 1200 kg
- Weight: 75kg
- Plate width: 35 cm
- Standard version includes a lifting hook.
- Heavy, compact, maneuverable plate compactor.
- Ideal for sand, gravel and mixed soils in Narrow trenches and along foundations walls and abutments
- Wheels set as standard.
- Water tank- optional
Specification
| Specification | Details |
|---|---|
| Model | PC1214 |
| Engine | GX160 |
| Type | Petrol |
| Make | Honda |
| Plate Size(mm) | 350×550 |
| Centrifugal Force (Kgf) | 1200 |
| Max Forward Speed (m/min) | 26 |
| Compaction area m^2/hr | 546 |
| Water tank capacity (L) (Optional) | 11 |
| Vibration Frequenct (Hz) | 93 |
| Weight (Kg) | 75 |
| Measured Sound Power level LwA=dB(A) | 105 |
| Vibration Value (Hand Arm) | 1.44 |
