Description

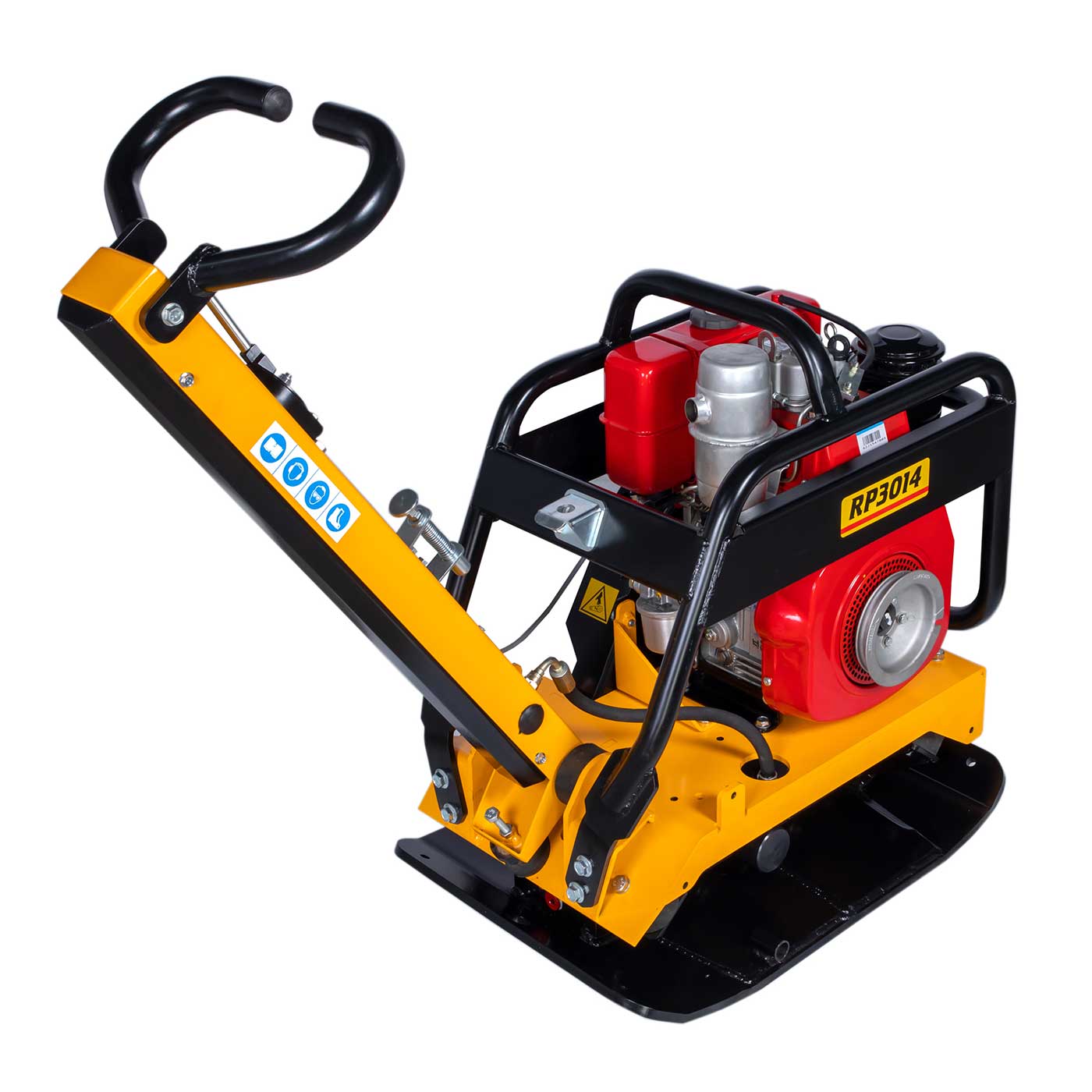

Built for the toughest compaction jobs, the RP3014-50 from Greaves combines powerful performance with rugged durability. Fitted with a reliable 5 HP Greaves 1520 diesel engine, this machine delivers a strong 3000 kg centrifugal force, making it ideal for compacting granular and mixed materials in demanding environments.
Specification
| Specification | Details |
|---|---|
| Model | RP3014-50 Greaves |
| Weight kg | 197 |
| Vibr. Freqency Hz | 81 |
| Centrifugal Force Kg. | 3000 |
| Compaction Area m²/hour | 600 |
| Max Traveling Speed m/min | 20 |
| Oil for Gear box liters SAE 15W/40 | 1 |
| Engine Make & Model | Greaves 1520 (Rope Start) |
| Output HP | 5 |
| Engine Speed rpm | 3450 |
| Fuel tank liters | 4.5 |
| Engine Oil SAE 15W/40 liters | 1 |
| Sound Level LwA=dB(A) | 103 |
| Vibration Values a=m/s² | 2.3 |
Features
- Infinitely variable hydraulically controlled forward and reverse compaction.
- Handle locks in one swift motion, allowing easy transport in the upright position.
- Reinforced and strengthened base plate, especially designed for tough jobs.
- New cage and engine box, strong and robust for the toughest jobs.
- Newly designed gearbox, allowing easy and quick maintenance.
- Strong anti-vibration mounting brackets.
- Easy to use and easy to mount transport wheels.
- High quality brass cage bearings.
- Self tightening clutch system.
